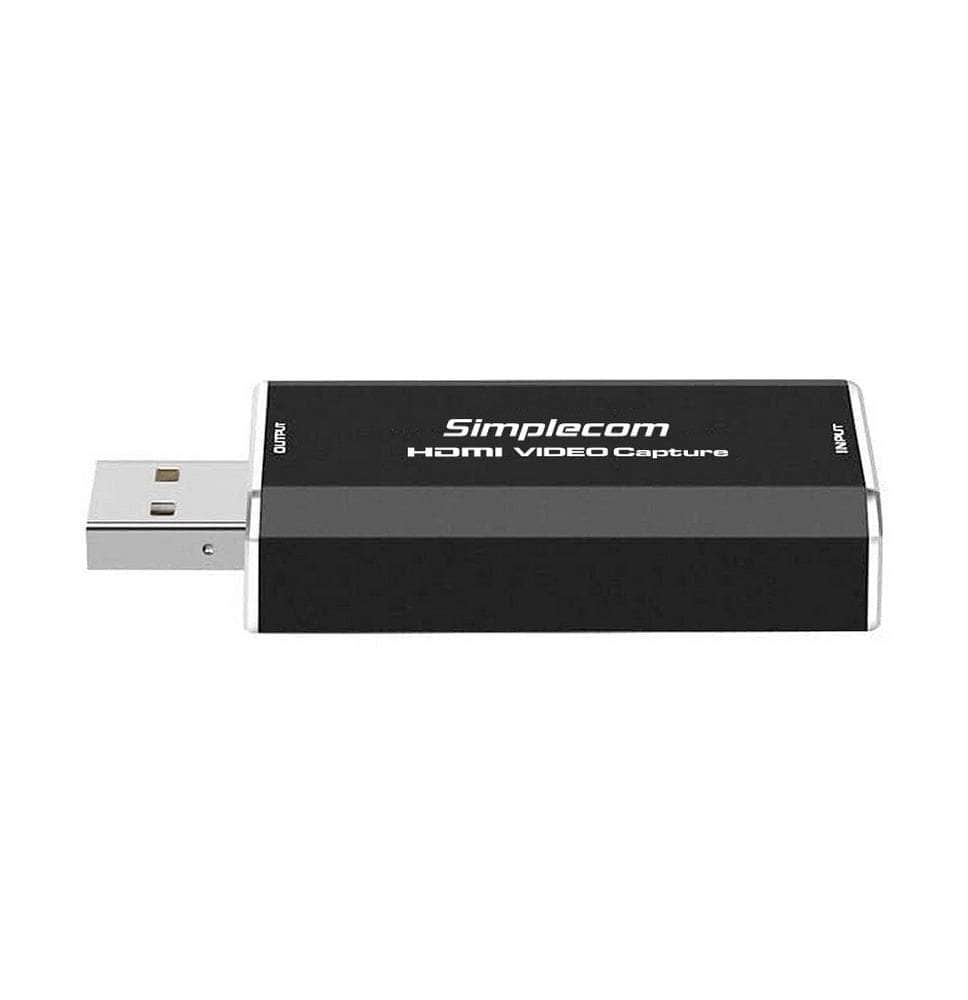

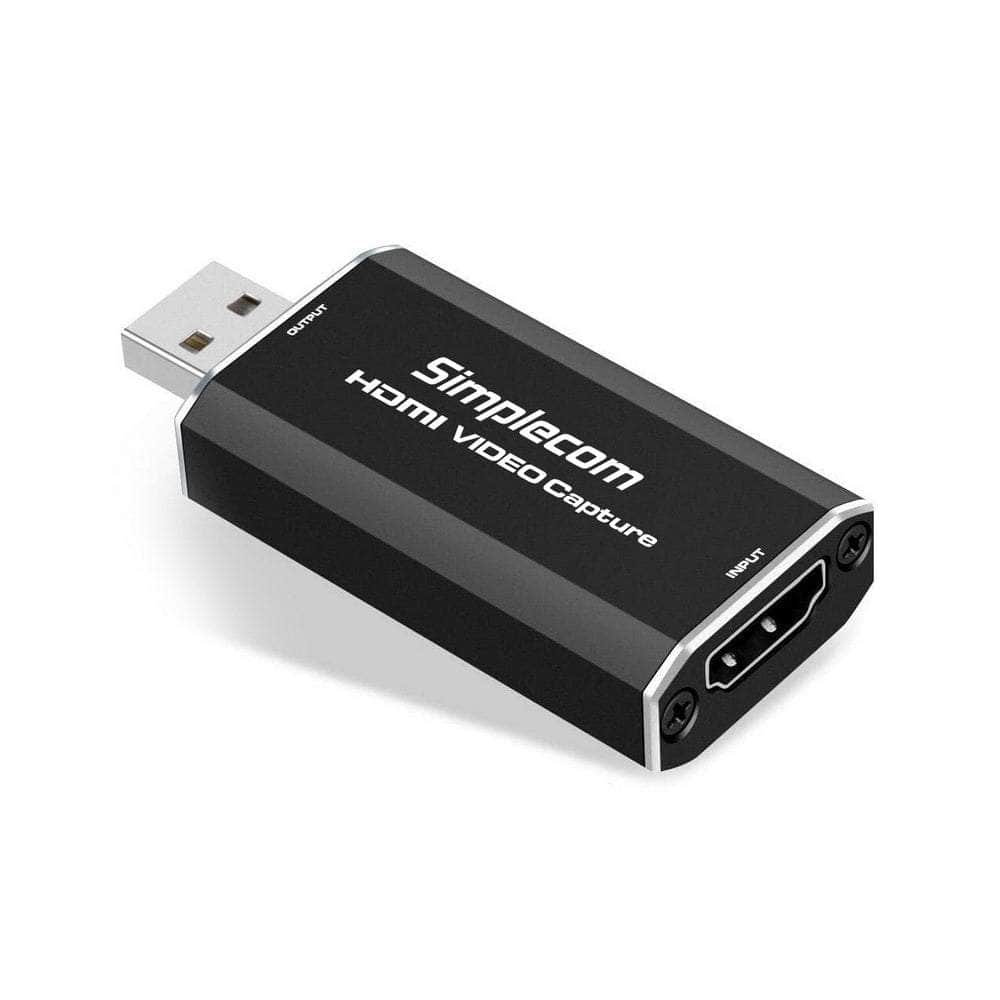

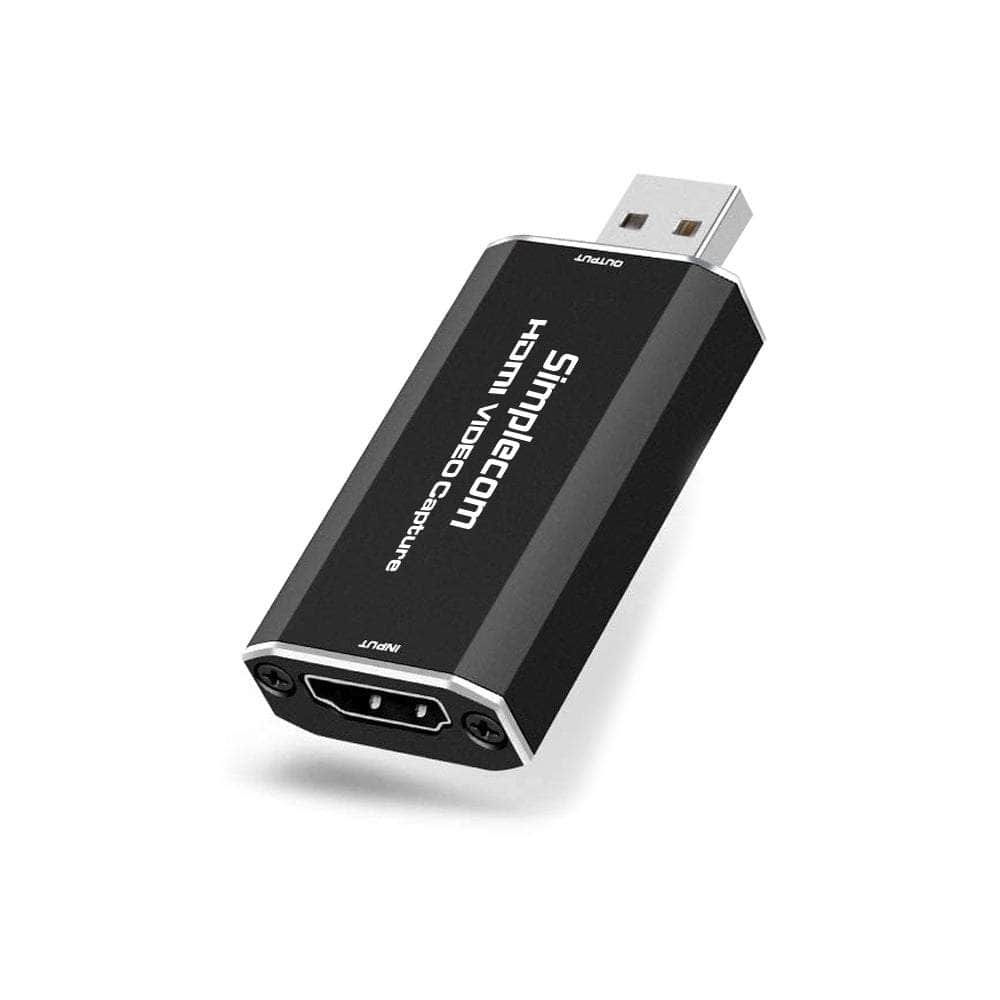

DA315 is a compact HDMI to USB 2.0 video capture card, which allow you to capture HDMI video in Full HD 1080p. You can simply hook up your camera, camcorder, game console or other HDMI source to your PC or Mac for recording or streaming.
Compliant with UVC (USB Video Class) and UAC (USB Audio Class), it’s Plug in and Play and easy to use, no driver installation is required. Ideal for video recording, live streaming, video conference, and compatible with most mainstream capture software and live platforms.
Features
Easy Operation, Plug in and Play, No driver required
Support HDMI input resolution up to 4K
Support USB output resolution up to 1080p
Compliant with UVC (USB Video Class) and UAC (USB Audio Class)
No external power supply required, compact and portable
Compatible with most mainstream capture software, such as VLC, OBS, Amcap, etc.
Ideal for video recording, live streaming and video conference
Support Windows, Mac OS
Specifications
HDMI Input Resolution Support: up to 3840x2160@30Hz
USB Output Resolution Support: up to 1920x1080@30Hz
Video Input Format: 8 / 10 / 12-bit Deep Color
Video Output Mode: YUV / JPEG
Audio Format Support: L-PCM
Input HDMI Cable Support: < 15m (AWG26 Standard HDMI Cable)
Maximum Working Current: 0.4A / 5VDC
Operating temperature range: (-10 to + 55 Celsius)
Dimension (L x W x H): 64 x 28 x 13mm
Weight: 21.4g
Material: Alloy Aluminium
System Requirement
CPU: Quad Core Intel Core i5 or higher, Core i7 CPU is recommended
RAM: 4GB or higher
Graphic Card: NVIDIA GT630 or higher
Operating System: Windows 10 (64-bit), Mac OS X10.9 or higher
Important Note
Avoid USB hub or extension cable, connect to computer USB port directly
Low performance PC will cause lag when recording or steaming
Make sure select right audio input device if more than one audio source connected
YUY2 Video format is not supported
Certain Canon and Fujifilm camera models are not supported, e.g. EOS 6D, 6D Mark II, M10, Rebel SL1, Rebel T3i; Fujifilm X-A10, X-E2S, X-Pro2, X-T1
Windows 7 doesn’t support auto installation
Package Contents
1 x Simplecom DA315 HDMI to USB 2.0 Video Capture Card Full HD 1080p for Live Streaming Recording
