Features:
CHN612 is a 12-in-1 USB-C multiport adapter with dual HDMI + VGA triple video outputs. It turns a single USB-C port into 12 ports, including 4 USB-A ports, 2 card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5\" audio jack and 100W PD charging.
If you need to connect with various devices to your laptop at same time, CHN612 is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.

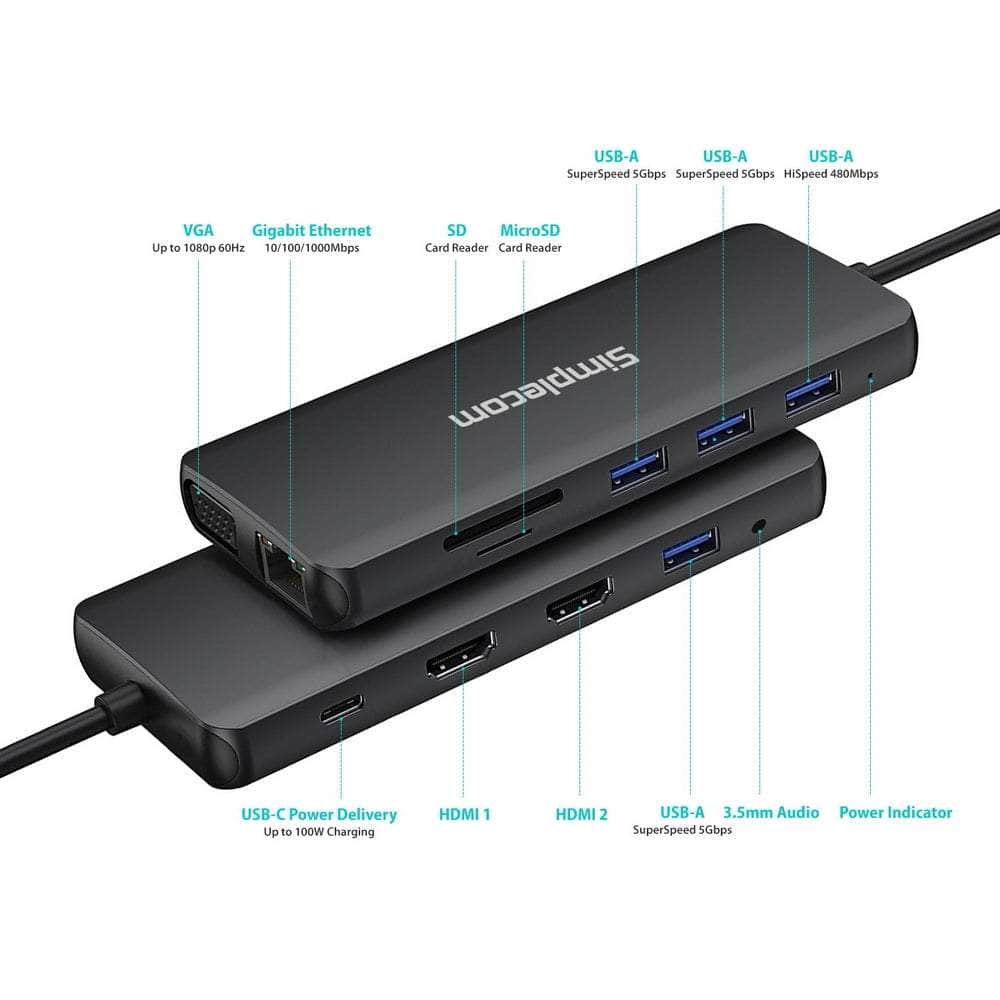

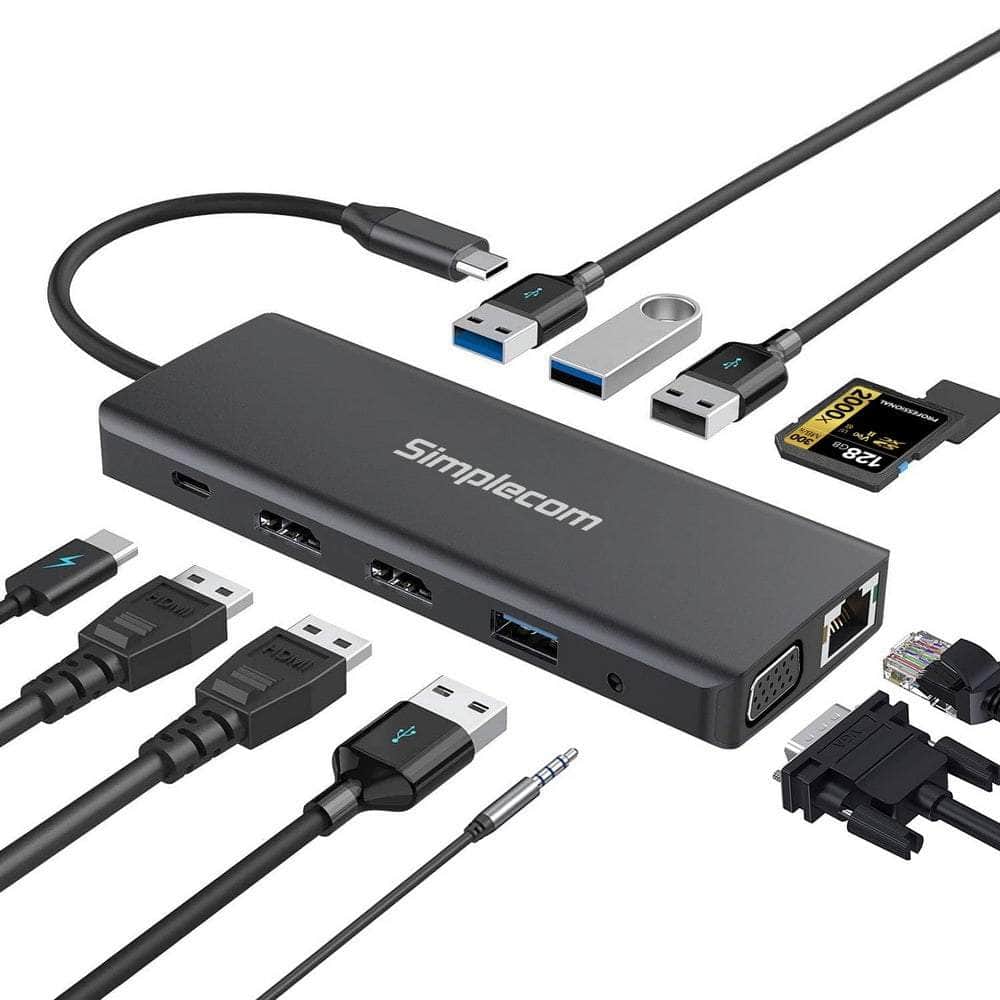

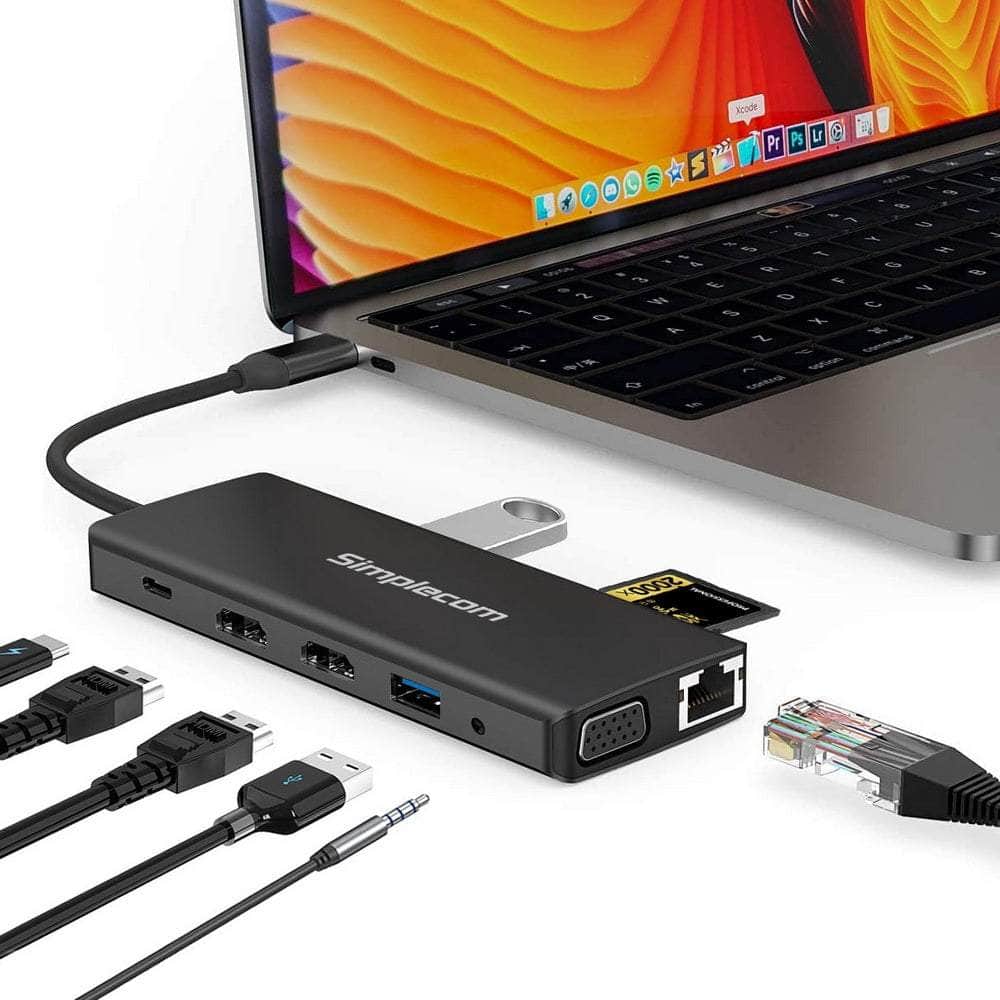

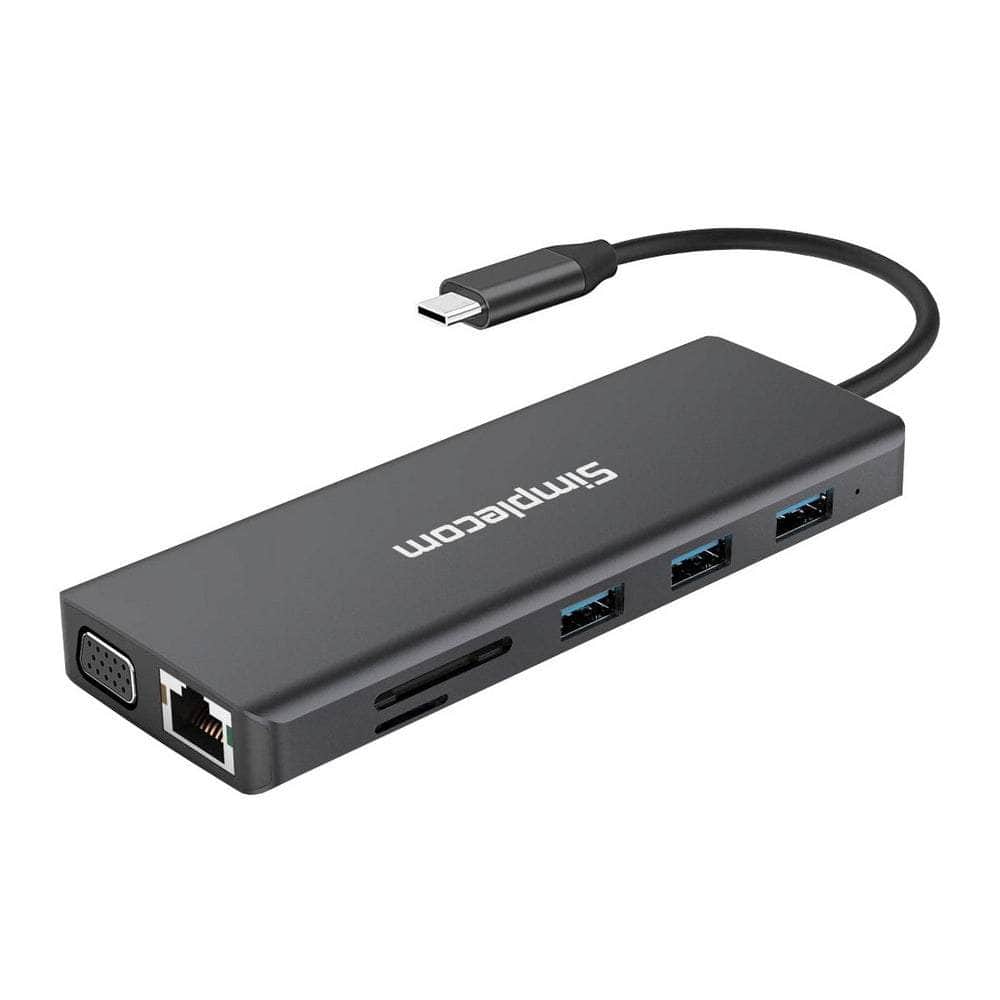

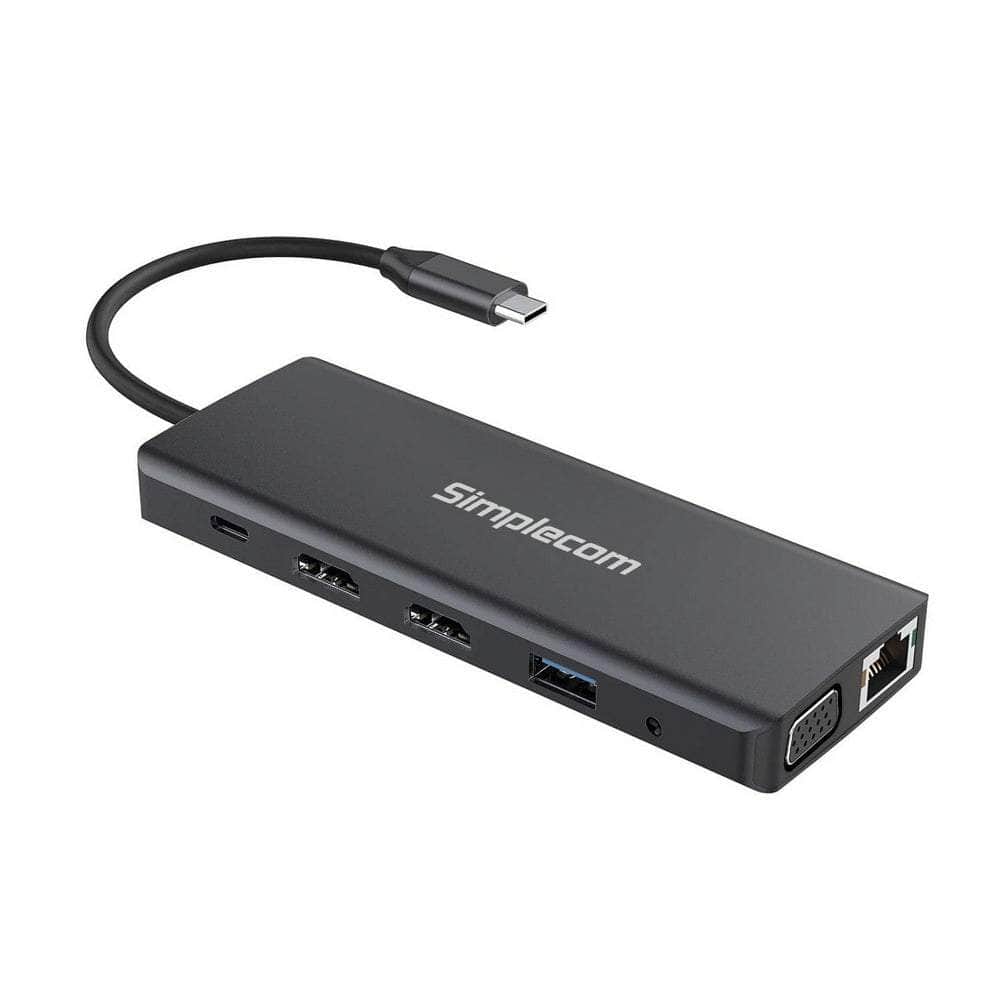

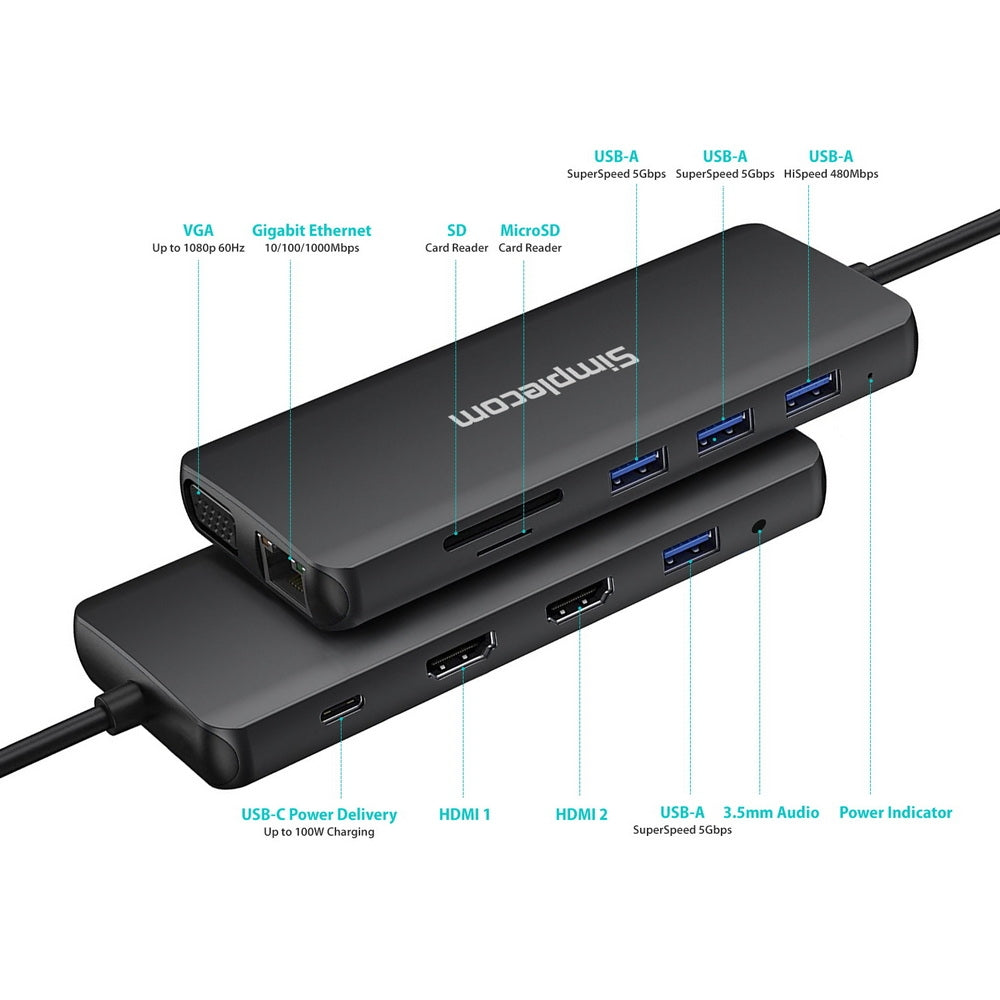

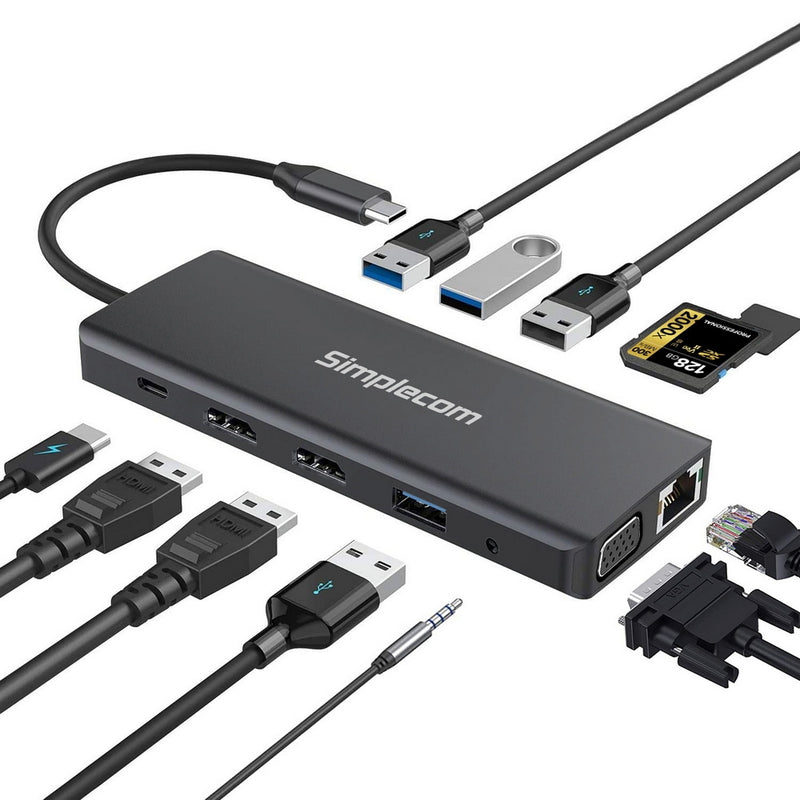

12-in-1 Massive USB-C Docking Station
A powerful all-in-one USB-C docking station with dual HDMI, VGA outputs, 100W PD charging port, Gigabit Ethernet Port, SD/MicroSD Card reader, 3.5mm audio output and 4 port USB hub (3x SuperSpeed 5Gbps USB ports and 1x HiSpeed 480Mbps USB port).
Triple Video Outputs with MST Support
This multiport adapter offers one VGA output and dual HDMI outputs. It allows you to connect 3 screens simultaneously, and supports up to 2 extended screens with MST support. Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1080p@60Hz on each external monitor (Please note MST is for Windows system only, MacOS doesn\'t support MST).
SuperSpeed USB Hub with SD/MicroSD Card Reader
3x USB-A port with a maximum transfer speed up to 5Gbps. It allows you to connect USB Storage Drive, keyboard, mouse, thumb drive or other USB devices.
100W USB-C Power Delivery
The USB-C PD Port can charge your connected device while other ports are working. The USB-C port supports PD2.0 and up to 100W Power Delivery charging.
Gigabit Ethernet
Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.
Stylish and Durable Aluminium Alloy Casing
This USB-C multiport adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. Its compact design makes it perfect for travelling.
Powerful 12-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
USB-A ports support up to 5Gbps transfer rate following USB 3.2 Gen 1 specification
Dual HDMI plus VGA, triple video outputs with MST Support
Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz>
Support Mirror or Extended mode (maximum 2 extended mode displays)
Gigabit Ethernet support connection speeds of up to 1000Mbps
2 Slot Card reader for SD and microSD memory cards
USB-C PD port for charging the laptop with up to 100W of power
3.5mm audio jack for easy connection of headphones or speakers
Durable & stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Plug & play, no driver software required
Specifications:
USB Hub: 4x USB-A Female (3x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps)
Video Output: 2x HDMI, VGA
HDMI Resolution: Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1920x1080@60Hz on each external monitor
VGA Resolution: up to 1080p@60Hz
MST Support: Yes (for Windows System only)
RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
Card Reader: SD and MicroSD (HighSpeed 480Mbps)
PD Charging: USB-C Female (for charging only), up to 100W
3.5\" Audio Jack: Yes
Operation Temperature: 0 - 45°C
Dimensions: 120 x 55 x 16 mm
Cable Length: 15 cm (11.8 in.)
Weight: 100 g
Housing: Aluminium Alloy
System Requirements:
Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 8 or above, MacOS 10.9 or above
Package Content:
1 x Simplecom CHN612 USB-C 12-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display Gigabit LAN
Important Note
Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function.
The USB-C Female port is for PD Charging only, not for data transfer
Please connect power delivery adapter when using high powered devices
Don't recommend for charging iPad, tablet or other high power USB devices
